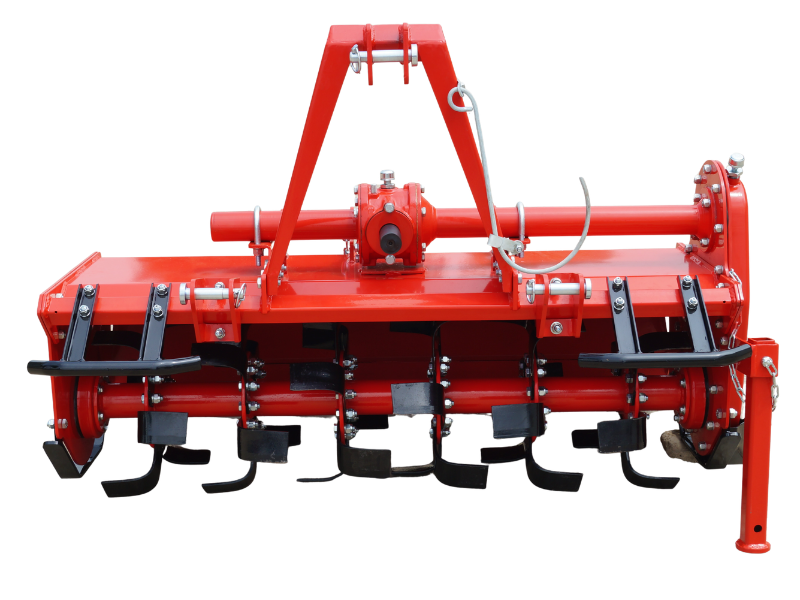

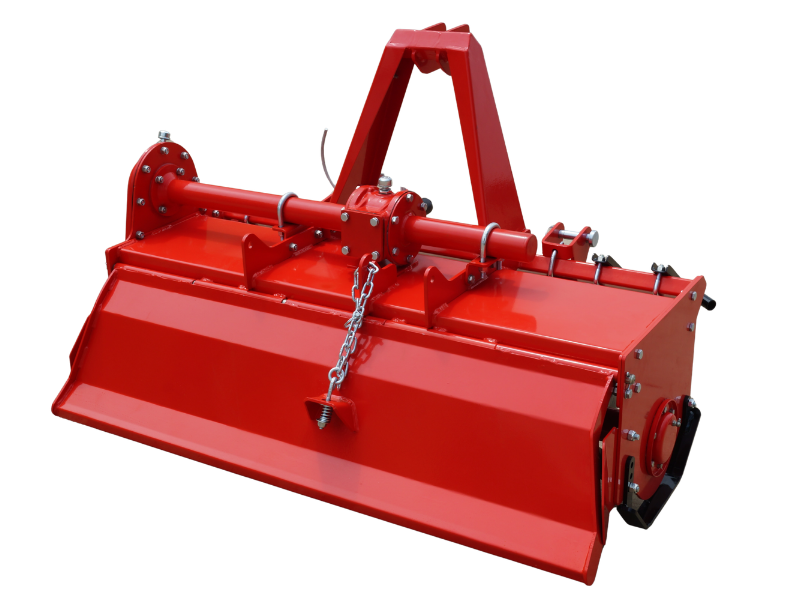

XEOS Rotary Tiller is a versatile and efficient implement designed for compact and sub-compact tractors. It is specially developed for soil preparation in agricultural and horticultural applications such as nurseries, vineyards, orchards, and hobby farms. It helps in breaking, mixing, and loosening soil to create an ideal seedbed for planting. XEOS Series is a light duty rotary tiller used for soil preparation, cultivation, and mixing of crop residues in small agricultural and horticultural fields. Compared to heavy-duty rotary tillers used for large-scale farming, the XEOS Series is designed for compact tractors and lighter agricultural operations. It offers efficient soil pulverization and mixing while requiring lower tractor power and providing easy operation. XEOS rotary tillers are considered light duty models and are ideal for small farms, orchards, vineyards, and gardening applications where compact tractors are commonly used.

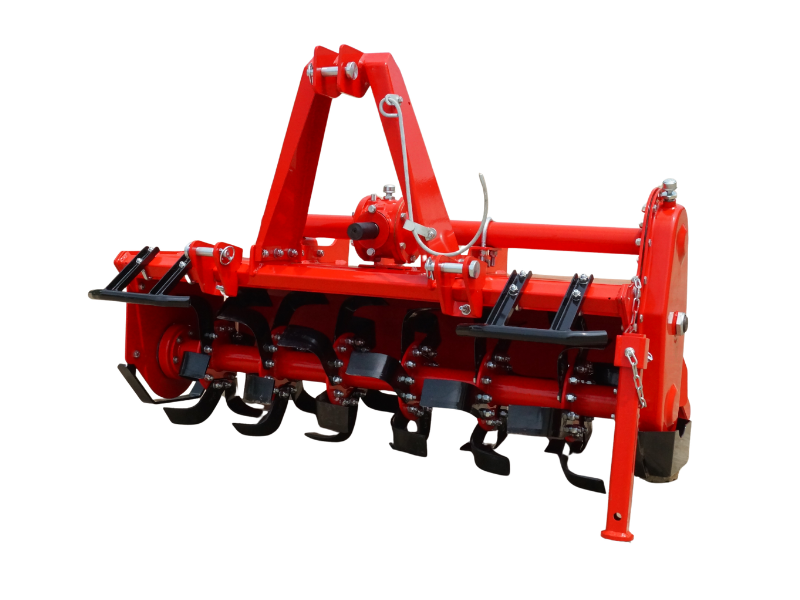

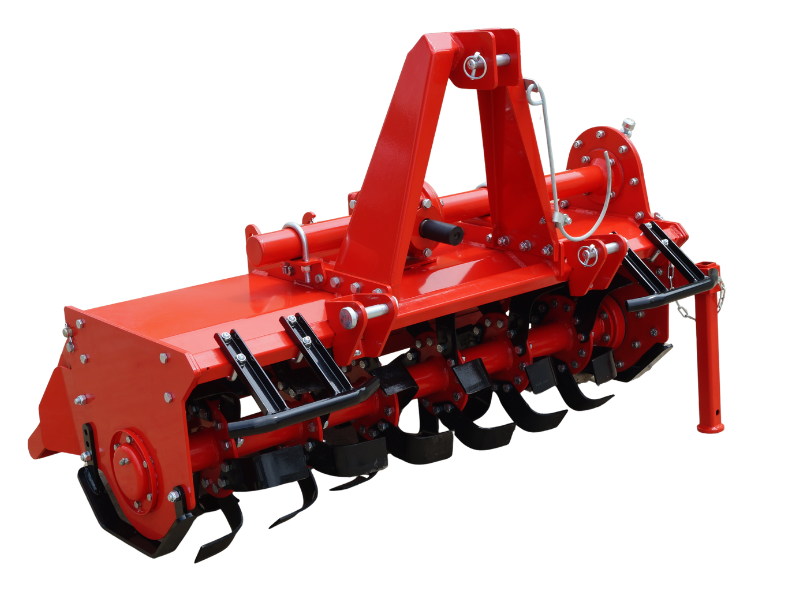

XEOS Rotary  tillers are PTO-driven implements. High quality L-shaped blades are mounted on a horizontal rotating shaft which cuts, mixes, and pulverizes the soil for proper seedbed preparation.

• Suitable for compact and sub-compact light duty tractors from 15 HP to 40 HP.
• Used for small farms, fruit and vegetable cultivation, orchards, vineyards, gardening, nurseries, and hobby farming.
• Powder coated paint and zinc coated fasteners provide excellent resistance against corrosion and ensure longer machine life.
• Adjustable side depth skids allow the implement to loosen and aerate the soil up to 4-5-inch depth, improving soil structure and crop growth conditions.
• High quality blade materials ensure long hours of operation and maximize the productivity and profitability of the farmers.

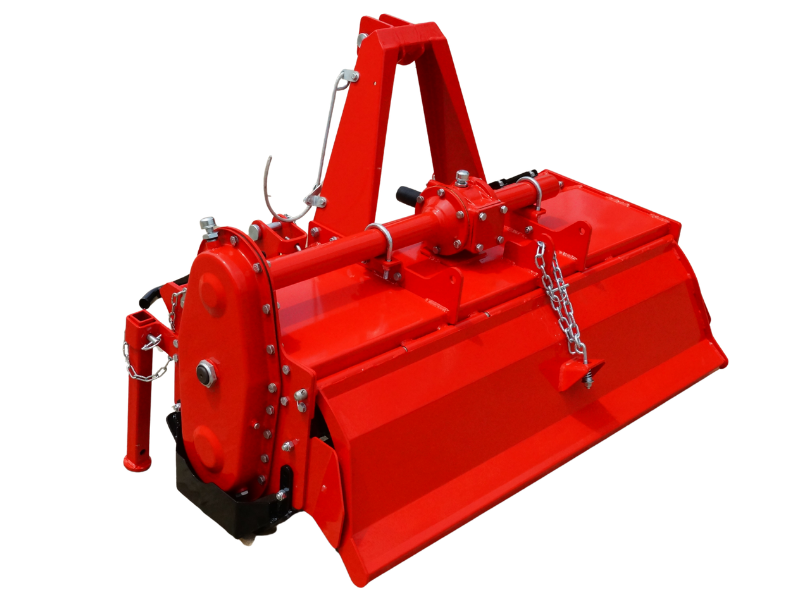

• Gear driven side transmission operating in oil bath provides smooth power transmission and long durability.
• Rotary gear mechanism is equipped with high quality sealed bearings to prevent entry of mud, dust, and moisture.
•  Designed to meet CE and UKCA compliance standards for international markets.
• Series 4 PTO shaft with slip clutch protection prevents transmission damage during overload operation.



• PTO Joint
• FMS Kit
• Operating Manual / Parts Catalogs
